TDK Power Inductor SLF Series Sample Kit
| Bild | Produkt | Preis | Anzahl | Warenkorb |
| TDK Power Inductor SLF Series Sample Kit

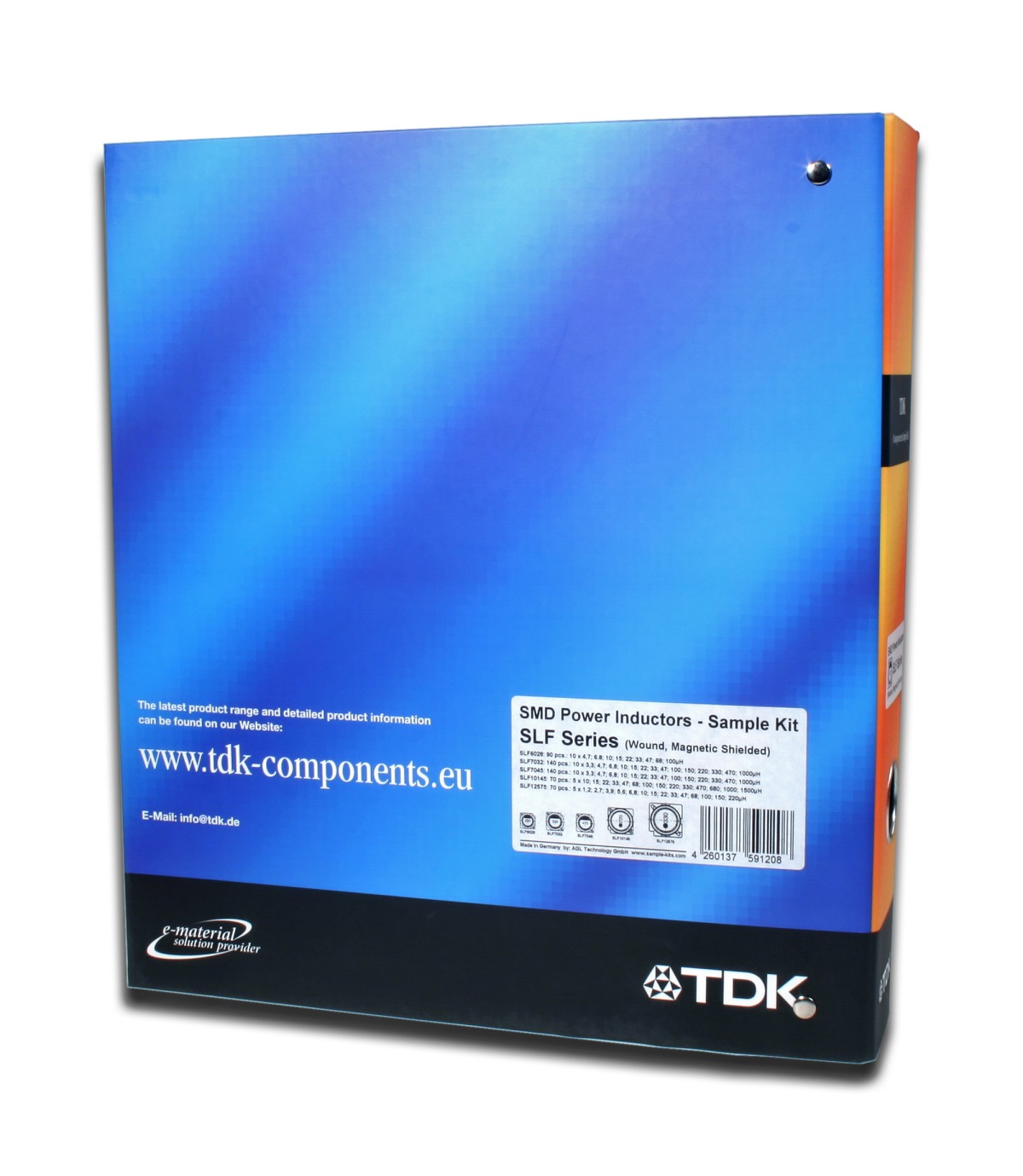

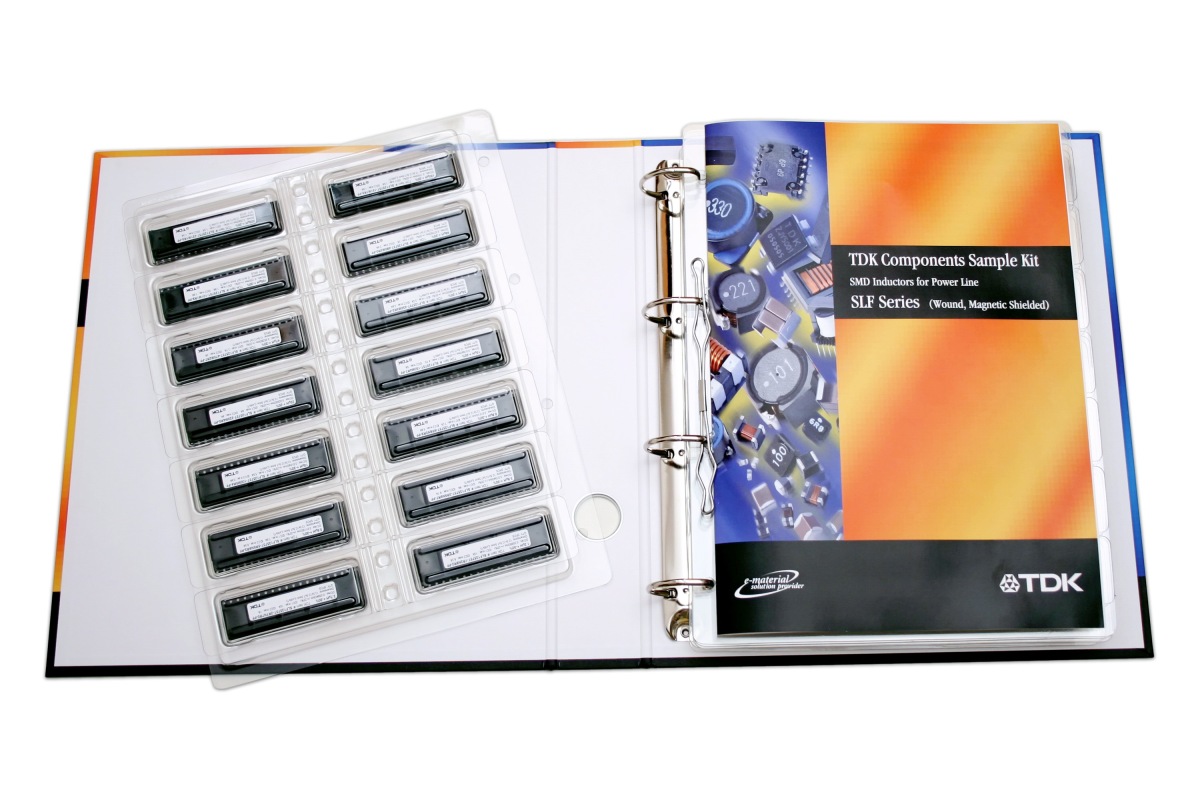

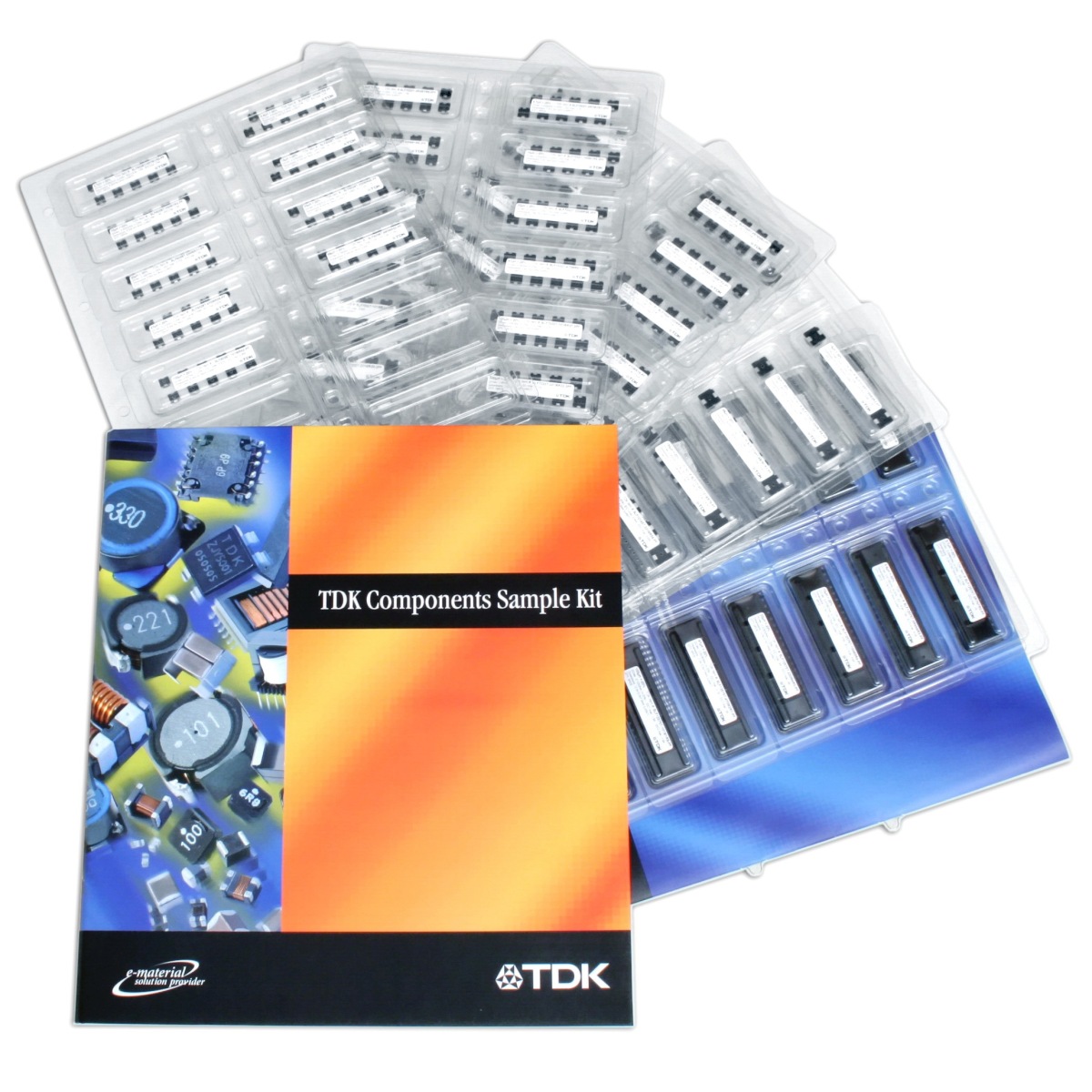

- 65 Werte (E3) - SLF6028 - Insgesamt 510 Stück Produkt-ID: TDK-SLF |
249,00 EUR zzgl. 19% USt. zzgl. Versandkosten |
| Bild1 | Bild2 | Bild3 |
 |
 |
|
| Datasheets |
TDK SLF Power Inductor Sample Kit(TDK-SLF-Kit.pdf, 1106 KB)
März 2008 download
TDK Components Sample Kit SLF Series(TDK Components Sample Kit SLF Series.pdf, 2008 KB)
März 2008 download
| Bauteile technische Daten Components technical specifications |
|
Bezeichnung Parameter |
Wert Value |
Einheit Unit |
|
Hersteller Manufacturer |
TDK | |
|
Bauteilgröße Component size |
- 6 x 6 x 2.8 (SLF6028) - 7 x 7 x 3.2 (SLF7032) - 7 x 7 x 4.5 (SLF7045) - 10 x 10 x 4.5 (SLF10145) - 12.5 x 12.5 x 7.5 (SLF12575) |
mm |
|
Bauteilserie Component series |
SLF Power Inductor (Wound, Magnetic Shielded) | |
|
Bauteiltoleranz Tolerance of the components |
Siehe Tabelle: "Sortiment Inhalt" See table: "Sample Kit Content" |
| Eigenschaften des Sortiments Characteristics of the sample kit |
|
Bezeichnung Parameter |
Wert Value |
Einheit Unit |
|
Bauteilgröße Component size |
- SLF6028 - SLF7032 - SLF7045 - SLF10145 - SLF12575 |
|
|
Bauteiltoleranz Tolerance of the Components |
Siehe Tabelle: "Sortiment Inhalt" See table: "Sample Kit Content" |
|
|
Wertebereich Range of values |
- 4.7µH - 100µH (SLF6028) - 3.3µH - 1000µH (SLF7032) - 3.3µH - 1000µH (SLF7045) - 10µH - 1500µH (SLF10145) - 1.2µH - 220µH (SLF12575) |
|
|
Anzahl der Werte Number of values |
SUMME / TOTAL: 65 - 9 valus of SLF6028 - 14 valus of SLF7032 - 14 valus of SLF7045 - 14 valus of SLF10145 - 14 valus of SLF12575 |
|
|
Bauteile pro Wert Number of parts per value |
- 10 (SLF6028, SLF7032, SLF7045) - 5 (SLF10145, SLF12575) |
Stück pieces |
|
Bauteile gesamt Number of parts in total |
510 |
Stück pieces |
|
RoHS konform RoHS Compliance |
Ja Yes |
|
|
Sortimentsystem Sample kit system |
A4 Ringordner A4 ring binder |
|
|
Abmessungen (L x B x H) Dimensions (l x w x h) |
ca. / approx. 320 x 285 x 50 | mm |
|
Gewicht Weight |
1.6 | kg |
|
Seitenanzahl SMD container pages Number of SMD container pages |
5 |
Stück pieces |
| Sortiment Inhalt Sample Kit Content |
|
Nr. Nbr. |
Wert Value |
Baugröße Dimension |
Strombelastbarkeit Rated current (A) based on inductance change |
DC-Widerstand DC-Resistance (Ohm)+-20% |
Toleranz Tolerance |
TDK_Teilenummer_Part_No. |
| 1 | 4.7µH | SLF6028 | 1.6max. | 0.0284 | +-20% | SLF6028T-4R7M1R6-PF |
| 2 | 6.8µH | SLF6028 | 1.5max. | 0.0354 | +-20% | SLF6028T-6R8M1R5-PF |
| 3 | 10µH | SLF6028 | 1.3max. | 0.0532 | +-20% | SLF6028T-100M1R3-PF |
| 4 | 15µH | SLF6028 | 1.0max. | 0.0745 | +-20% | SLF6028T-150M1R0-PF |
| 5 | 22µH | SLF6028 | 0.77max. | 0.104 | +-20% | SLF6028T-220MR77-PF |
| 6 | 33µH | SLF6028 | 0.69max. | 0.148 | +-20% | SLF6028T-330MR69-PF |
| 7 | 47µH | SLF6028 | 0.59max. | 0.21 | +-20% | SLF6028T-470MR59-PF |
| 8 | 68µH | SLF6028 | 0.5max. | 0.29 | +-20% | SLF6028T-680MR50-PF |
| 9 | 100µH | SLF6028 | 0.42max. | 0.43 |
+-20% |
SLF6028T-101MR42-PF |
| 10 | 3.3µH | SLF7032 | 1.9max. | 0.023 | +-20% | SLF7032T-3R3M1R9-2PF |
| 11 | 4.7µH | SLF7032 | 1.7max. | 0.030 | +-20% | SLF7032T-4R7M1R7-2PF |
| 12 | 6.8µH | SLF7032 | 1.6max. | 0.041 | +-20% | SLF7032T-6R8M1R6-2PF |
| 13 | 10µH | SLF7032 | 1.4max. | 0.053 | +-20% | SLF7032T-100M1R4-2PF |
| 14 | 15µH | SLF7032 | 1.1max. | 0.075 | +-20% | SLF7032T-150M1R1-2PF |
| 15 | 22µH | SLF7032 | 0.96max. | 0.11 | +-20% | SLF7032T-220MR96-2PF |
| 16 | 33µH | SLF7032 | 0.75max. | 0.16 | +-20% | SLF7032T-330MR75-2PF |
| 17 | 47µH | SLF7032 | 0.67max. | 0.24 | +-20% | SLF7032T-470MR67-2PF |
| 18 | 100µH | SLF7032 | 0.45max. | 0.45 | +-20% | SLF7032T-101MR45-2PF |
| 19 | 150µH | SLF7032 | 0.37max. | 0.65 | +-20% | SLF7032T-151MR37-2PF |
| 20 | 220µH | SLF7032 | 0.29max. | 1.05 | +-20% | SLF7032T-221MR29-2PF |
| 21 | 330µH | SLF7032 | 0.22max. | 1.67 | +-20% | SLF7032T-331MR22-2PF |
| 22 | 470µH | SLF7032 | 0.2max. | 2.05 | +-20% | SLF7032T-471MR20-2PF |
| 23 | 1000µH | SLF7032 | 0.13max. | 4.78 |
+-20% |
SLF7032T-102MR13-2PF |
| 24 | 3.3µH | SLF7045 | 2.5max. | 0.02 | +-30% | SLF7045T-3R3M2R5-PF |
| 25 | 4.7µH | SLF7045 | 2max. | 0.03 | +-20% | SLF7045T-4R7M2R0-PF |
| 26 | 6.8µH | SLF7045 | 1.7max. | 0.039 | +-20% | SLF7045T-6R8M1R7-PF |
| 27 | 10µH | SLF7045 | 1.3max. | 0.036 | +-20% | SLF7045T-100M1R3-PF |
| 28 | 15µH | SLF7045 | 1.1max. | 0.052 | +-20% | SLF7045T-150M1R1-PF |
| 29 | 22µH | SLF7045 | 0.9max. | 0.061 | +-20% | SLF7045T-220MR90-PF |
| 30 | 33µH | SLF7045 | 0.82max. | 0.096 | +-20% | SLF7045T-330MR82-PF |
| 31 | 47µH | SLF7045 | 0.75max. | 0.125 | +-20% | SLF7045T-470MR75-PF |
| 32 | 100µH | SLF7045 | 0.5max. | 0.25 | +-20% | SLF7045T-101MR50-PF |
| 33 | 150µH | SLF7045 | 0.4max. | 0.34 | +-20% | SLF7045T-151MR40-PF |
| 34 | 220µH | SLF7045 | 0.33max. | 0.52 | +-20% | SLF7045T-221MR33-PF |
| 35 | 330µH | SLF7045 | 0.25max. | 0.74 | +-20% | SLF7045T-331MR25-PF |
| 36 | 470µH | SLF7045 | 0.22max. | 1.05 | +-20% | SLF7045T-471MR22-PF |
| 37 | 1000µH | SLF7045 | 0.14max. | 2.28 | +-20% | SLF7045T-102MR14-PF |
| 38 | 10µH | SLF10145 | 3max. | 0.0364 | +-20% | SLF10145T-100M2R5-PF |
| 39 | 15µH | SLF10145 | 2.4max. | 0.0472 | +-20% | SLF10145T-150M2R2-PF |
| 40 | 22µH | SLF10145 | 2.1max. | 0.0591 | +-20% | SLF10145T-220M1R9-PF |
| 41 | 33µH | SLF10145 | 1.6max. | 0.0815 | +-20% | SLF10145T-330M1R6-PF |
| 42 | 47µH | SLF10145 | 1.4max. | 0.1 | +-20% | SLF10145T-470M1R4-PF |
| 43 | 68µH | SLF10145 | 1.2max. | 0.14 | +-20% | SLF10145T-680M1R2-PF |
| 44 | 100µH | SLF10145 | 1max. | 0.20 | +-20% | SLF10145T-101M1R0-PF |
| 45 | 150µH | SLF10145 | 0.79max. | 0.35 | +-20% | SLF10145T-151MR79-PF |
| 46 | 220µH | SLF10145 | 0.65max. | 0.47 | +-20% | SLF10145T-221MR65-PF |
| 47 | 330µH | SLF10145 | 0.54max. | 0.68 | +-20% | SLF10145T-331MR54-PF |
| 48 | 470µH | SLF10145 | 0.47max. | 1.03 | +-20% | SLF10145T-471MR47-PF |
| 49 | 680µH | SLF10145 | 0.38max. | 1.6 | +-20% | SLF10145T-681MR38-PF |
| 50 | 1000µH | SLF10145 | 0.32max. | 2.8 | +-20% | SLF10145T-102MR29-PF |
| 51 | 1500µH | SLF10145 | 0.22max. | 3.4 | +-20% | SLF10145T-152MR22-PF |
| 52 | 1.2µH | SLF12575 | 13max. | 0.0069 | +-30% | SLF12575T-1R2N8R2-PF |
| 53 | 2.7µH | SLF12575 | 10max. | 0.0094 | +-30% | SLF12575T-2R7N7R0-PF |
| 54 | 3.9µH | SLF12575 | 9max. | 0.0104 | +-30% | SLF12575T-3R9N6R7-PF |
| 55 | 5.6µH | SLF12575 | 7.8max. | 0.0116 | +-30% | SLF12575T-5R6N6R3-PF |
| 56 | 6.8µH | SLF12575 | 7.2max. | 0.0131 | +-30% | SLF12575T-6R8N5R9-PF |
| 57 | 10µH | SLF12575 | 5.5max. | 0.0156 | +-20% | SLF12575T-100M5R4-PF |
| 58 | 15µH | SLF12575 | 4.7max. | 0.0184 | +-20% | SLF12575T-150M4R7-PF |
| 59 | 22µH | SLF12575 | 4max. | 0.0263 | +-20% | SLF12575T-220M4R0-PF |
| 60 | 33µH | SLF12575 | 3.2max. | 0.0395 | +-20% | SLF12575T-330M3R2-PF |
| 61 | 47µH | SLF12575 | 2.7max. | 0.0528 | +-20% | SLF12575T-470M2R7-PF |
| 62 | 68µH | SLF12575 | 2max. | 0.0778 | +-20% | SLF12575T-680M2R0-PF |
| 63 | 100µH | SLF12575 | 1.9max. | 0.125 | +-20% | SLF12575T-101M1R9-PF |
| 64 | 150µH | SLF12575 | 1.5max. | 0.175 | +-20% | SLF12575T-151M1R5-PF |
| 65 | 220µH | SLF12575 | 1.3max. | 0.258 | +-20% | SLF12575T-221M1R3-PF |
